Compatible with:
2013/14/15/16 AUDI A4L
2012/13/15/16 A6L
2013/16 A3 Sedan
2012/13/16 A1
2013/14/16 S3/Q3/Q5(Original car light with socket）
2013/14/15 Superb Derivative
2015/16 Touareg
2015/16 Porsche Cayenne
2015/16 Sharon
2016 PHIDEON
2016 Volkswagen Alltrack
2016 sportvan (including light panel）
Overview:
* High definition and waterproof
* Distance reference line
* Prevent your car from bumping into others
NOTES:
* It\’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com
parison with your car trunk handle.
* By default, the camera will be produced as NTSC and with parking lines.
* Important: No LVDS connectors output to original screen.
Rearview camera parameters:
Solution: 1346+885
Sensor: Night vision CMOS
Format: CVBS N/AHD720P 25fps
Pixels: 100W
Interface: BMW head/AV
Angle: Horizontal 140°
Signal-to-noise ratio: ≥43dB
White balance: Automatic
Synchronization mode: Internal synchronization
Working temperature: -20℃-80℃
Waterproof level: IP68
Power adapter: 9V-15V±10%
Working current: 85mA±5mA

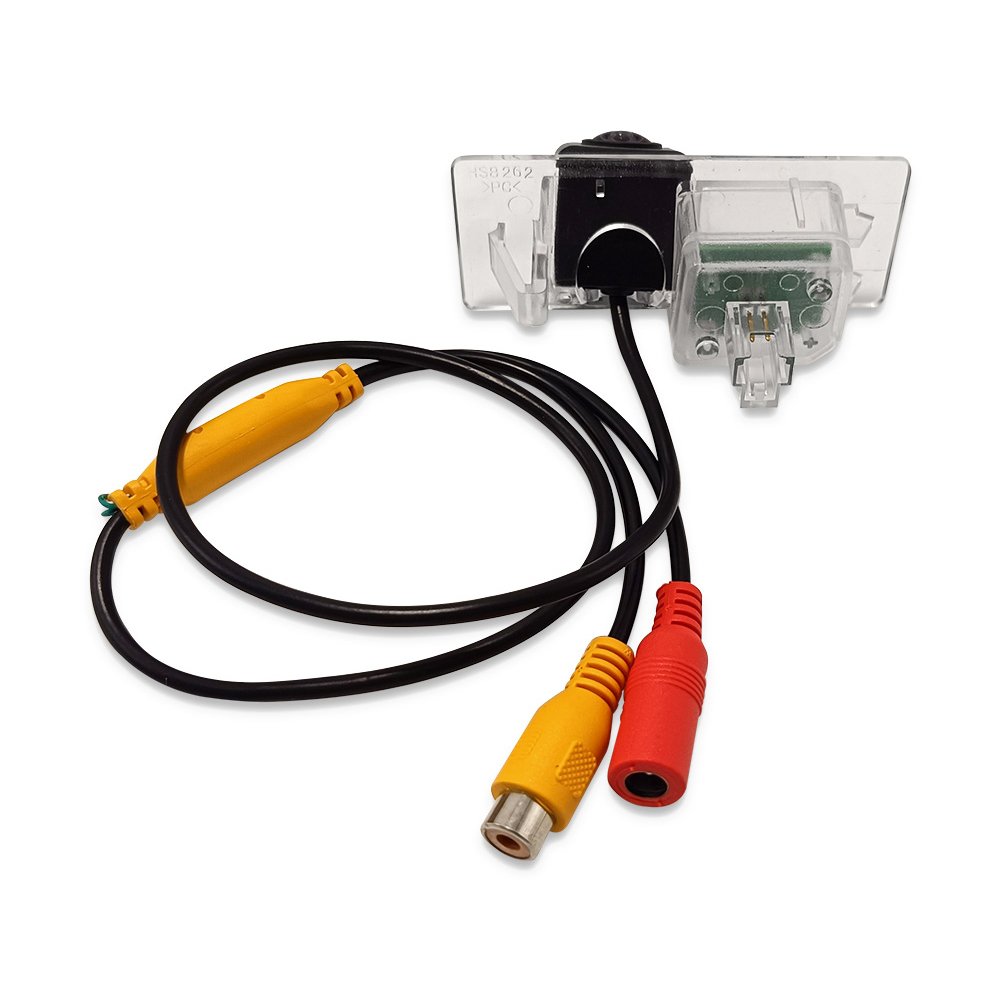

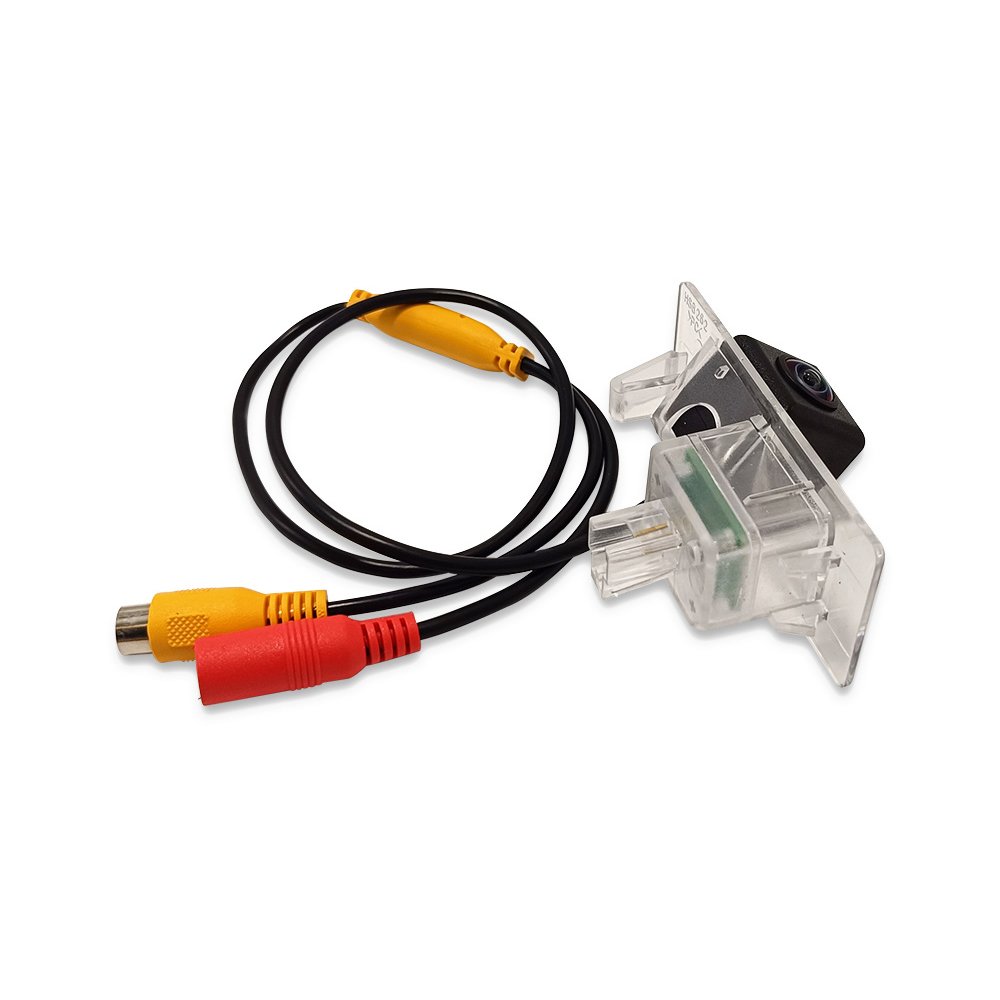

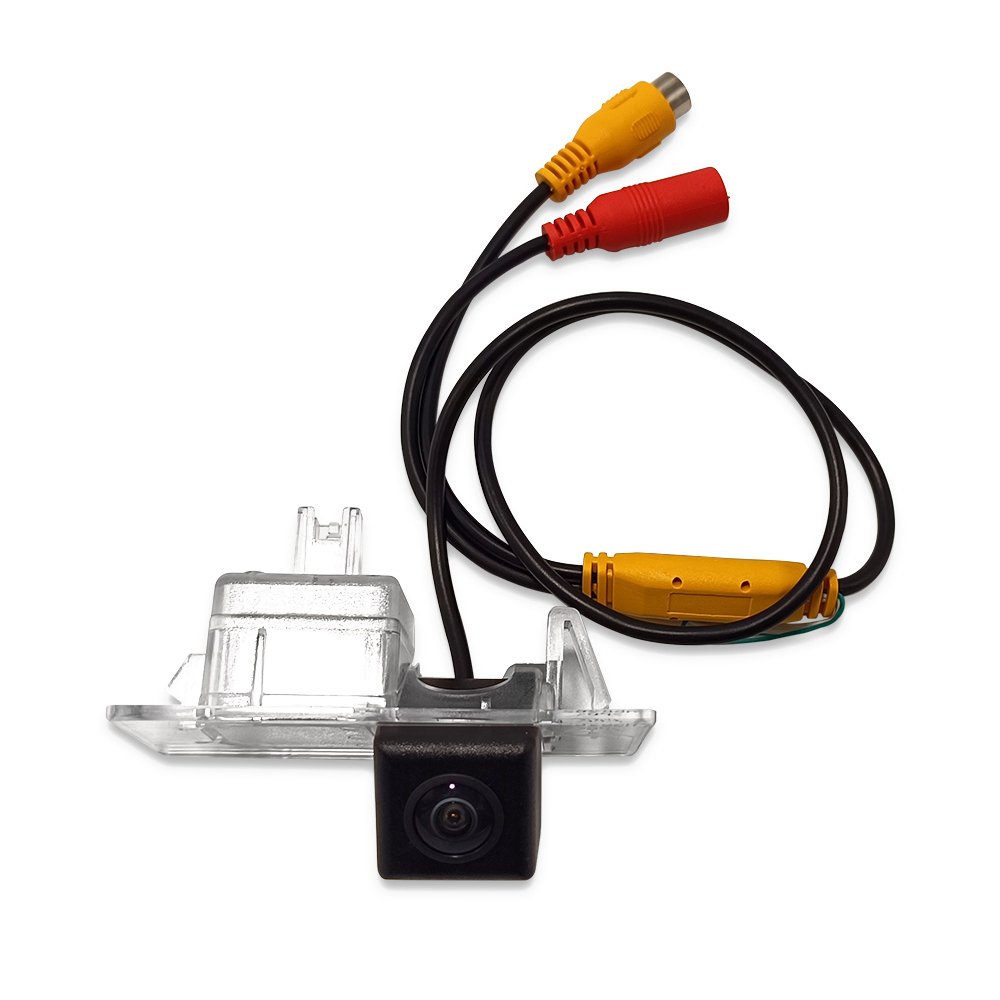

Product List:
– 1 x handle Reversing Camera

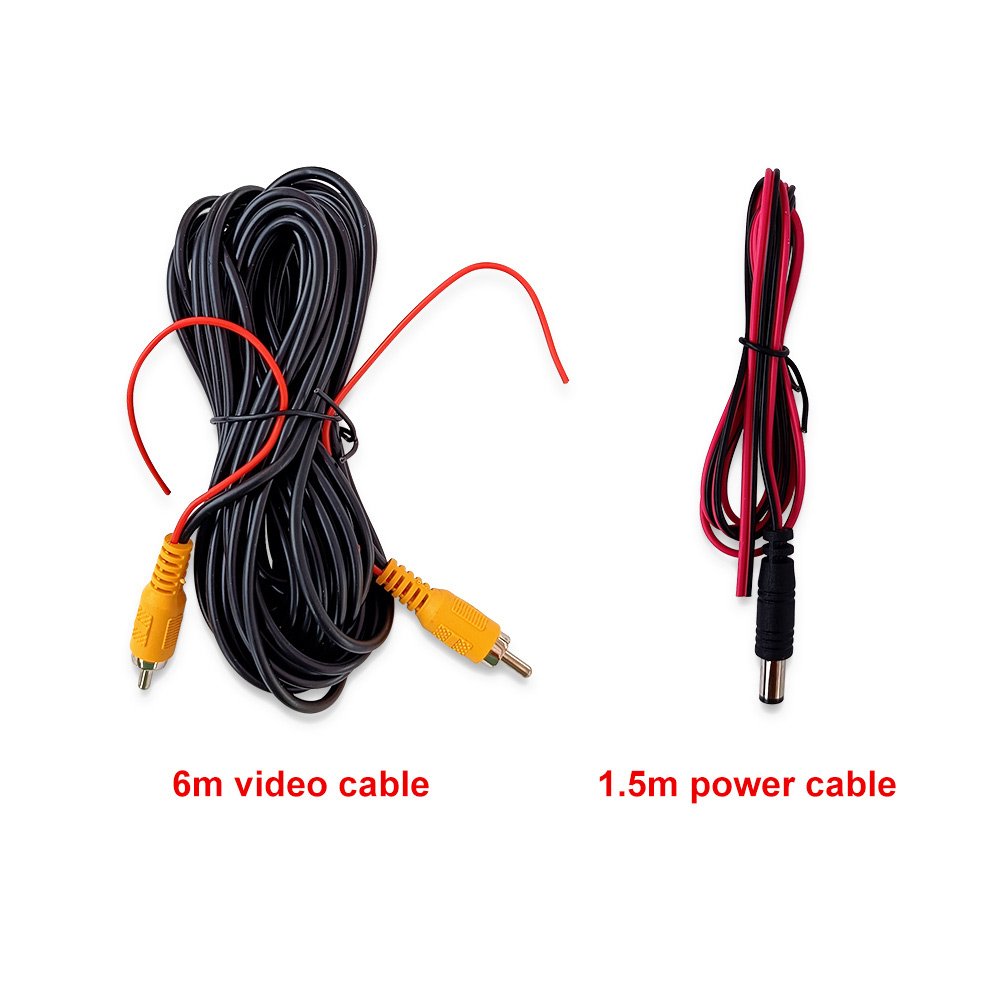

– 1 x Power cable
– 1 x Video cable

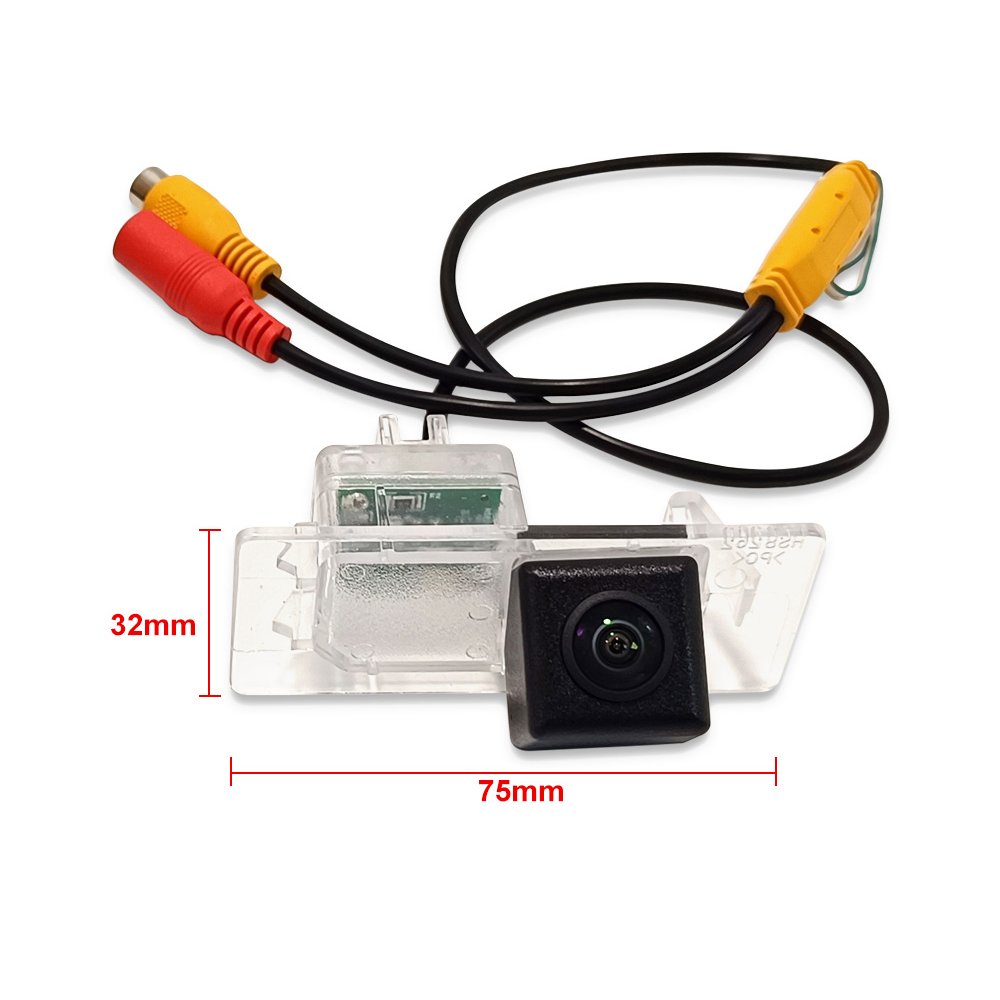

7.5×3.2cm 0.16kg
