Compatible with:
AHD 1080P universal rear view camera fisheye lens + compatible with CVBS
Overview:
* High definition and waterproof
* Distance reference line
* Prevent your car from bumping into others
NOTES:
* It\’s HIGHLY RECOMMENDED to check the sizes of the camera first and make a com
parison with your car trunk handle.
* By default, the camera will be produced as NTSC and with parking lines.
* Important: No LVDS connectors output to original screen.
Rearview camera parameters:
| SKU:EW-UN-M012 | SKU:EW-UN-V004 |
| Specifications:
Metal shell + with 360 degree rotation. |
Specifications:
Plastic shell + cannot rotate 360 degrees |
| Solution: 1346+885 | Solution: H63P+885 |
| Lens: Glass Fisheye | Lens: Glass Fisheye |
| Sensor: Night vision CMOS | Sensor: 3D Night Vision CMOS |
| Format: CVBS N/AHD720P 25fps | Format: AHD1080P 25fps/CVBS N |
| Pixels: 100W | Pixels: 100W |
| Interface: BMW head/AV | Interface: AV Rearview Camera |
| Angle: Horizontal 140° | Angle: Horizontal 140° |
| Signal-to-noise ratio: ≥43dB | Signal-to-noise ratio: ≥43dB |
| White balance: Automatic | White balance: Automatic |
| Synchronization mode: Internal synchronization | Synchronization mode: Internal synchronization |
| Working temperature: -20℃-80℃ | Working temperature: -20℃-80℃ |
| Waterproof level: IP68 | Waterproof level: IP68 |
| Power adapter: 9V-15V±10% | Power adapter: 9V-15V±10% |
| Working current: 85mA±5mA | Working current: 85mA±5mA |
Product List:

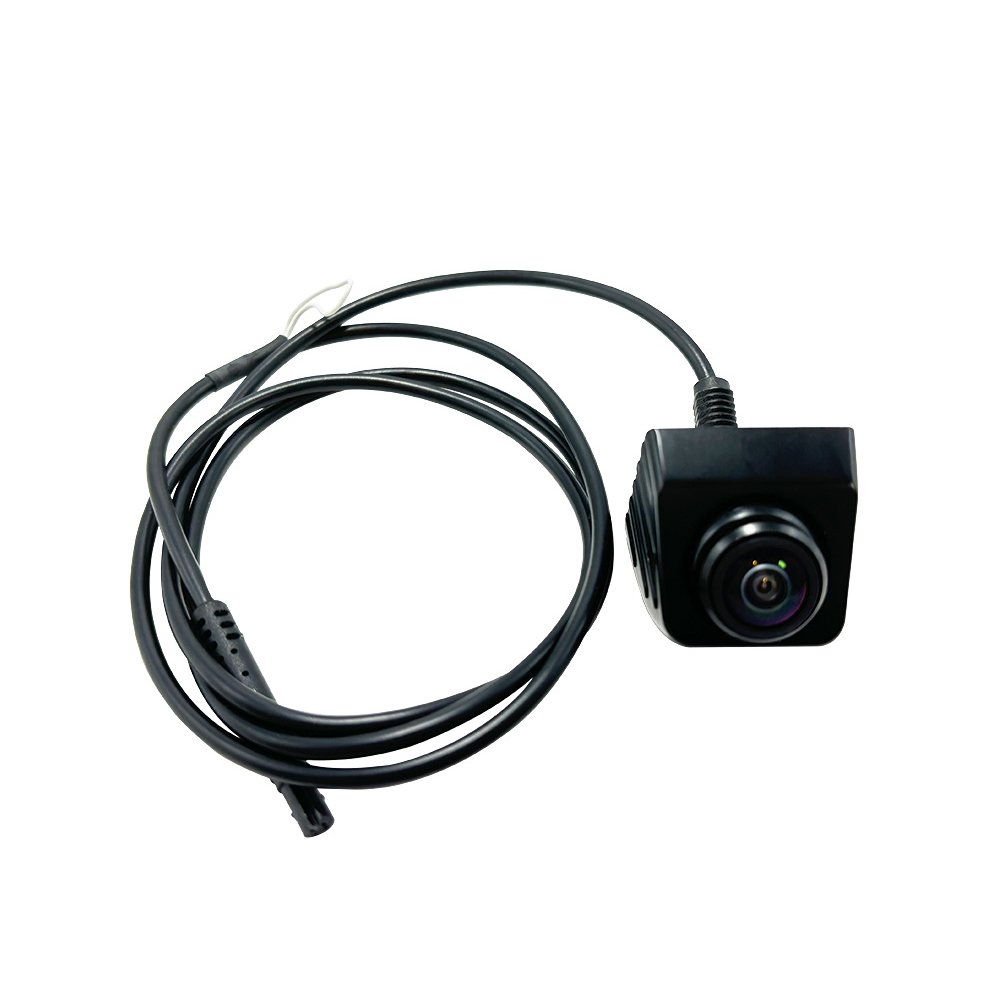

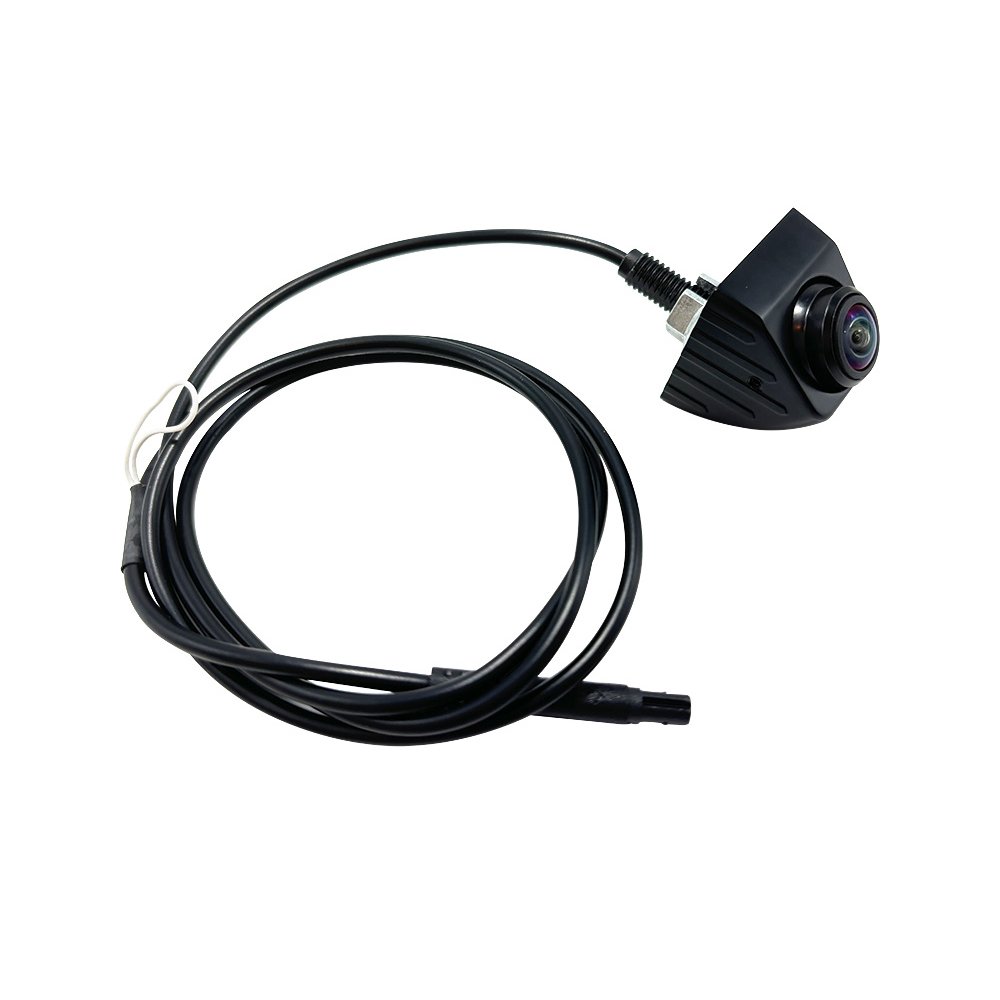

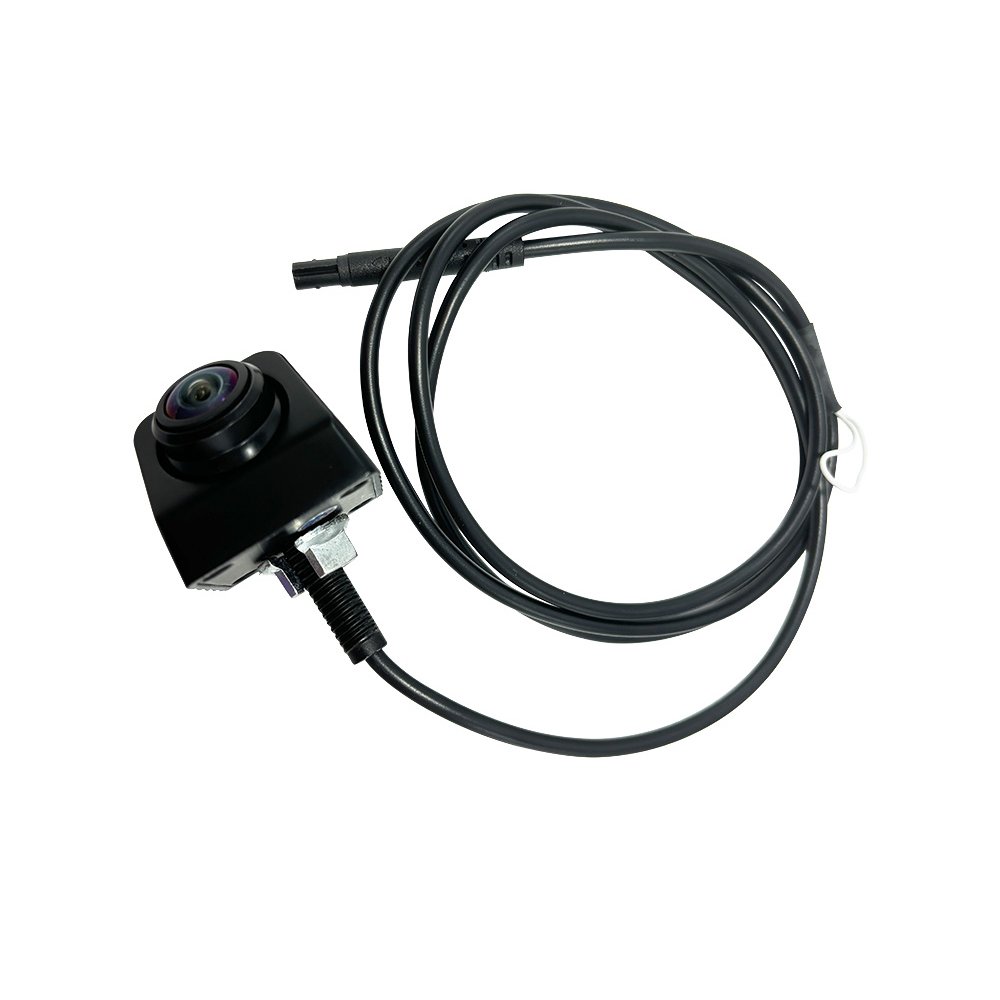

– 1 x handle Reversing Camera

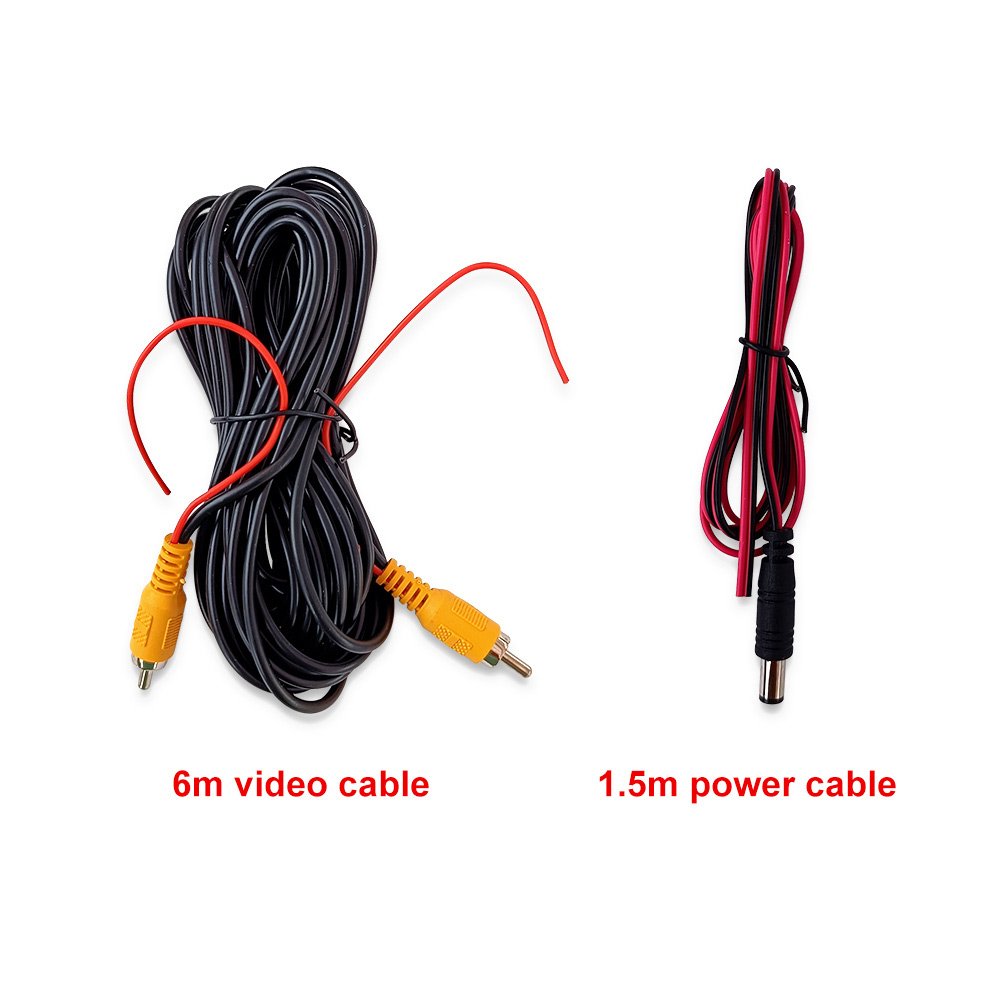

– 1 x Power cable
– 1 x Video cable

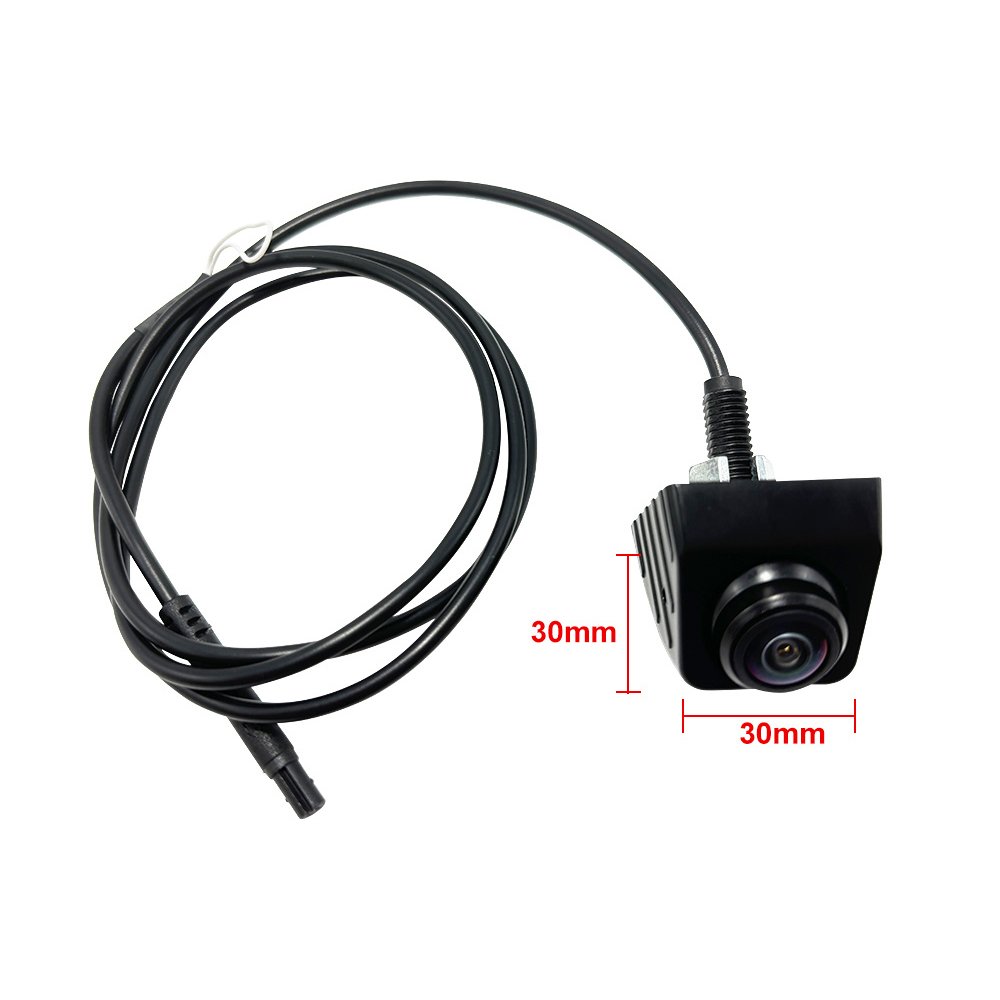

3X3cm 0.2kg
