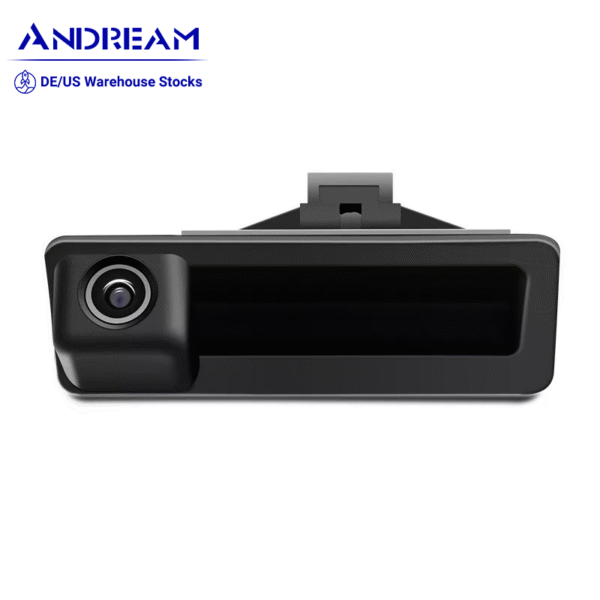

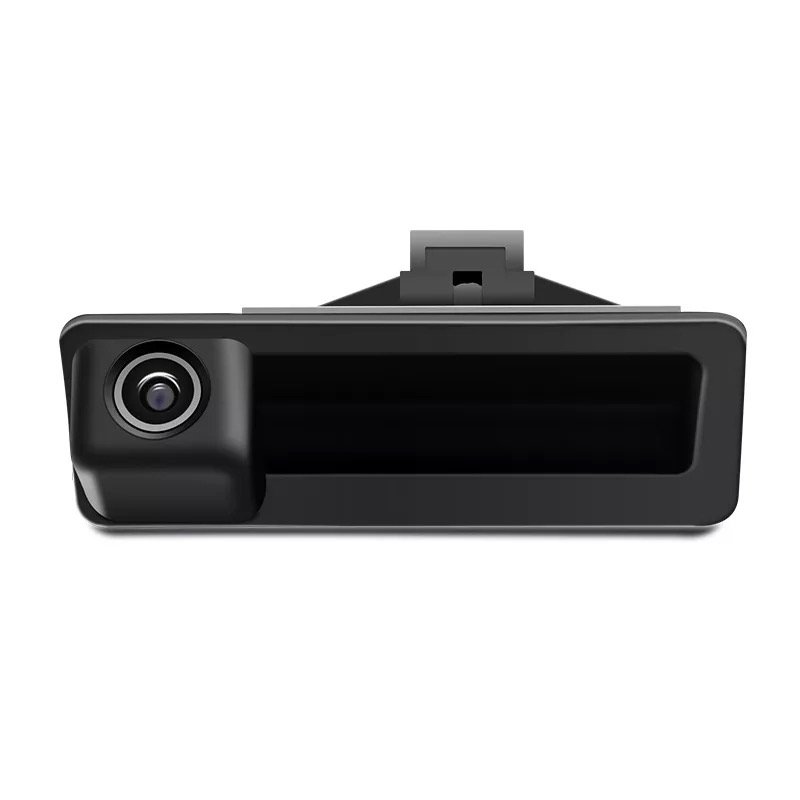

Tuning solution CCD HD Car Rear View Camera For BMW F30 F48 E60 E90 E70 E71 Series 3 5 X3 X1 Special Rear View Reversing Parking Camera

Specific parameters

Technical term              Technical parameters

Images Sensors:           CMOS

Power Supply(DCV):      DC 12V±1V

Power:                         <1W

Effective Pixels:            580×540/580×492

Electronic Shutter:        1/60(NTSC)/1/50(PAL)  -1/10,000  seconds

Lux:                             1Lux

S/N ratio:                     >=48DB

Resolution (TV Lines):   420

TV System:                  PAL/NTSC

Lens Angle(Deg.):         170°

Video Output :              1.0vp-p,750hm

IP Rating:                     IP66-IP67

White Balance:             auto

AGC:                           auto

BLC:                            auto

Operating Temperature(Deg.C): -20°~70°higher  temperature  95%
